Imagine, Create and Bathe In Luxury

concealed thermostatic shower valve lever chrome

Finish shown: Chrome

concealed thermostatic shower valve lever chrome Thumb
  • 10 Year Guarantee.
  • Chrome Plated.
  • Dual Control
  • Bespoke Made To Order
Find my Nearest Stockist

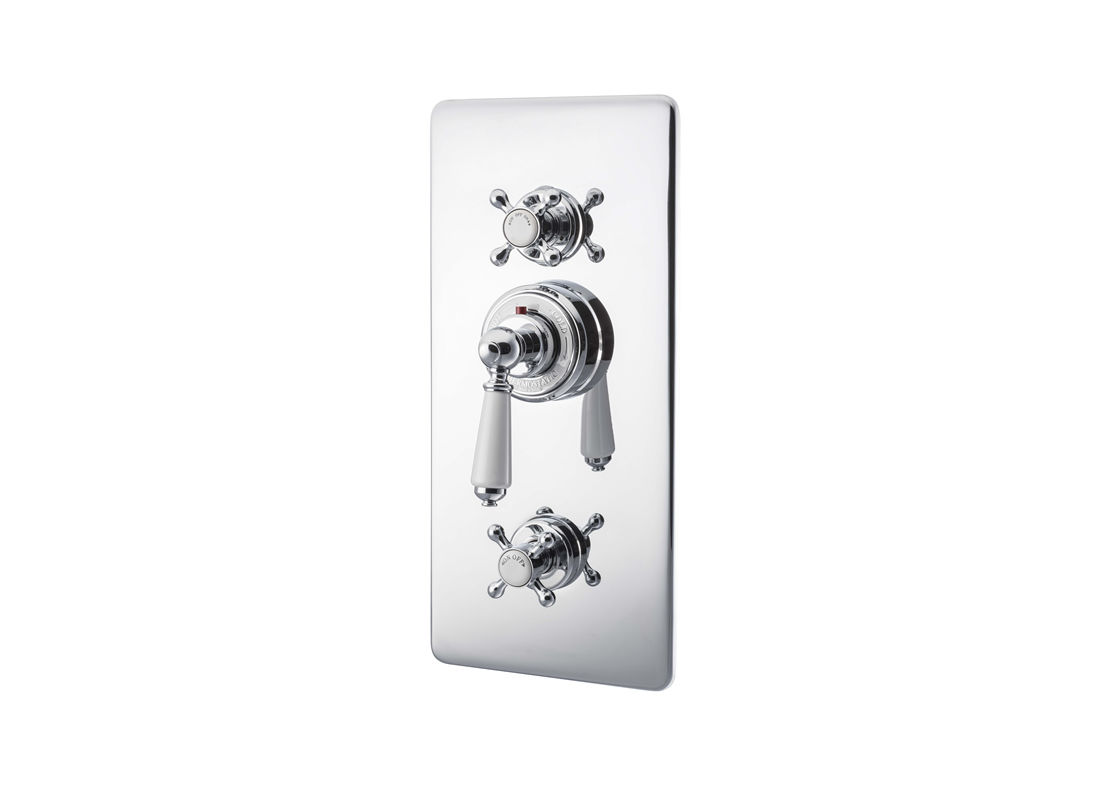

Concealed Dual Control Thermostatic Shower Valve Chrome

Each shower valve is fitted with the very latest in thermostatic cartridge technology that ensures optimum temperature control and safety. The thermostatic showers are also dual control, so that water flow and water temperature can be independently operated.

Specification

No. Of Outlets 3
Inlets 15mm
Outlet 3/4"
Side Outlet 1/2"
Flow Rate At 1.0 Bar 12 l/min
Flow Rate At 3.0 Bar 22 l/min
Flow Rate At 5.0 Bar 28 l/min
Fitting Depth min 64mm to max 70mm
Material Brass

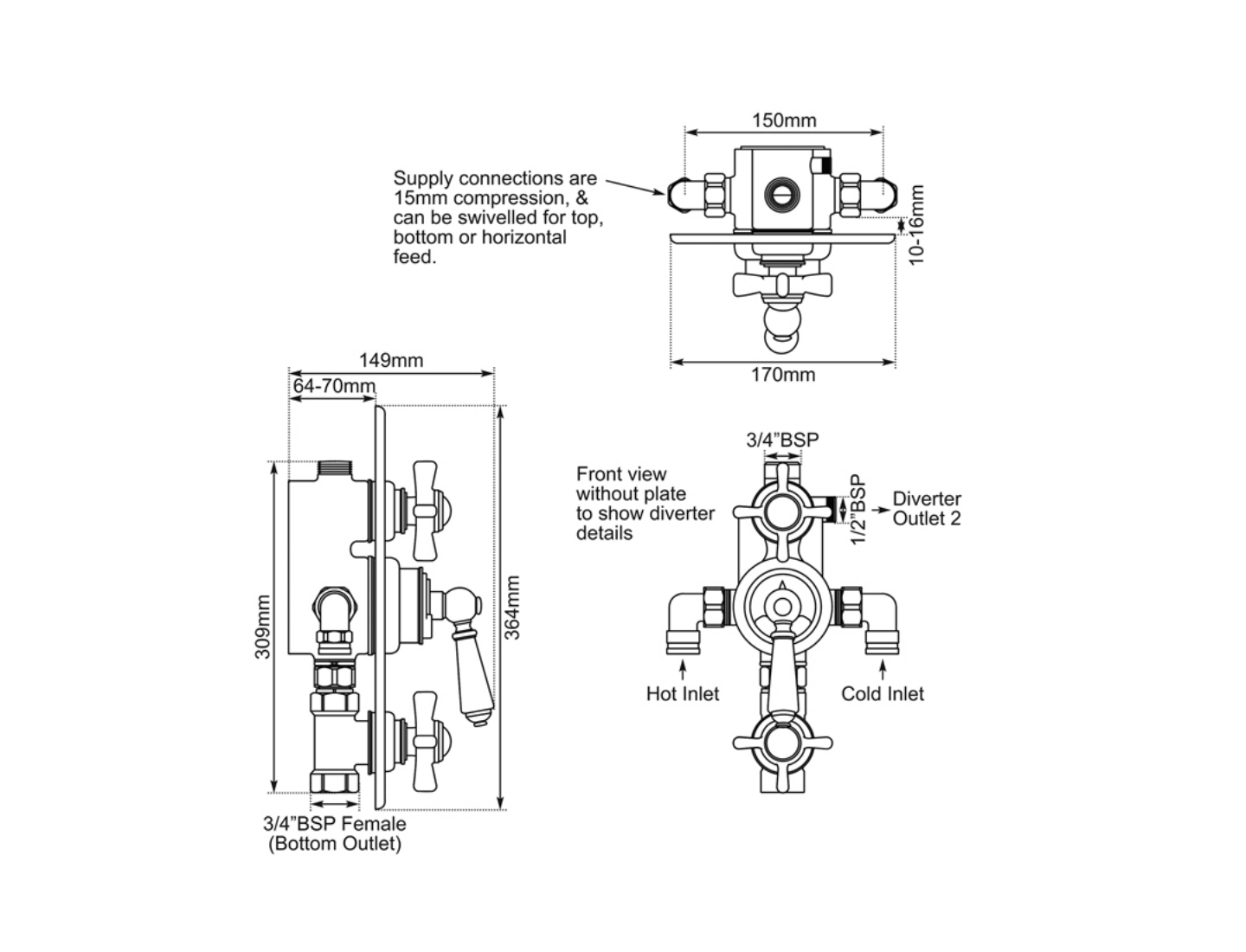

View Detailed Line Drawing

Item Codes

Chrome SWT004CH
